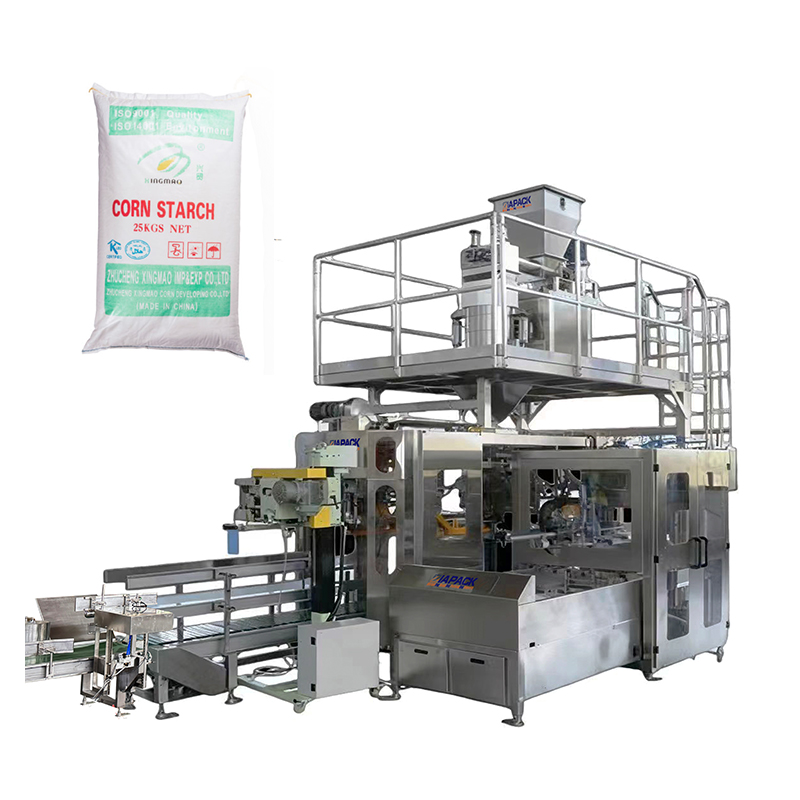

25KG 50KG Starch Powder Automatic Bagging Machine

Huvuddrag

Automatic weighing, automatic bag loading, automatic bag sewing, no manual operation is required;           Touch screen interface, simple and intuitive operation; The unit is composed of bag preparation warehouse, bag taking and bag handling device, bag loading manipulator, bag clamping and unloading device, bag holding pushing device, bag opening guiding device, vacuum system and control system;It has a wide adaptability to the packaging bag. The packaging machine adopts the bag picking method, that is, taking the bag from the bag storage, centering the bag, sending the bag forward, positioning the bag mouth, pre opening the bag, inserting the knife of the bag loading manipulator into the bag opening, and clamping the two sides of the bag mouth with air gripper on both sides, and finally loading the bag. This kind of bag loading method does not have high requirements on the size error of the bag manufacturing and the quality of the bag itself Low bag making cost; Compared with the pneumatic manipulator, the servo motor has the advantages of fast speed, smooth bag loading, no impact and long service life;

Two micro switches are installed at the opening position of the bag clamping device, which are used to detect whether the bag mouth is fully clamped and whether the bag opening is fully opened. In order to ensure that the packaging machine does not misjudge, does not spill material to the ground, improves the use efficiency of the packaging machine and on-site working environment;

Magnetventil och andra pneumatiska komponenter är förseglade design, inte exponerade installation, kan användas i damm miljö, för att säkerställa att utrustningen har en lång livslängd.

 Tekniska parametrar
